Leading Wholesale Trader and Authorised Distributor of Ratchet lever Hoist Model : S PRO
Features
STIER TM Chain Pulley Blocks with the best of German technology feature a proven and robust design, German/ Austrian make zinc-galvanized load chain
-
Light weight ultra compact chain pulley block.
-
Chain Guide: Double guide rollers with chain stopper ensure accurate alignment of load chain over load wheel.
-
Chain Guide: Double guide rollers with chain stopper ensure accurate alignment of load chain over load wheel.
-
Reliable Material of Construction Steel housing, cast hook holder and ball bearing mounted load sprocket for improved efficiency
-
Swivel Hook: Free swivelling, tempered high tensile steel top and bottom hooks fitted with spring loaded galvanised safety cast latch.
-
Robust and sturdy design, proven internationally

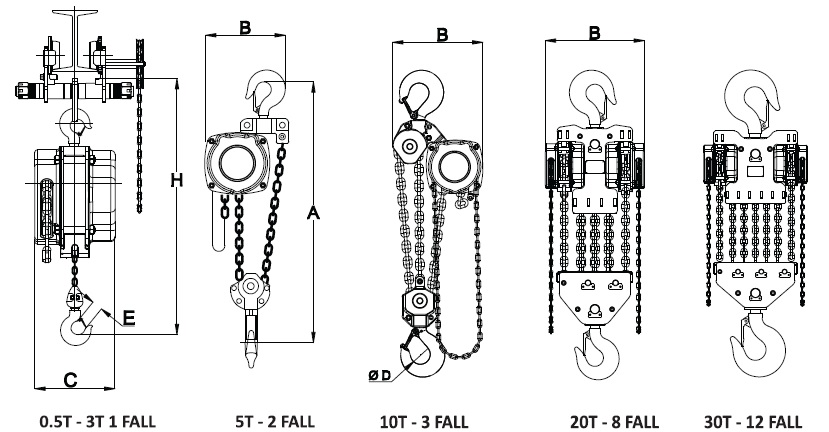

| Capacity (T) | 0.5 | 1 | 2 | 3 | 5 | 10 | 20 | 30 |
|---|---|---|---|---|---|---|---|---|
| Min. Headroom (A) (m) | 310 | 375 | 460 | 555 | 630 | 900 | 1050 | 1320 |
| Trolley Headroom H (mm) | 415 | 500 | 610 | 725 | 830 | 1050 | 1350 | 1550 |
| Hand Chain Force (daN) | 24 | 30 | 36 | 37 | 39 | 44 | 41×2 | 47×2 |
| Number of Chain Falls | 1 | 1 | 1 | 1 | 2 | 3 | 8 | 12 |
| Load Chain Size (mm) | 5×15 | 6×18 | 8×24 | 10×30 | 10×30 | 10×30 | 10×30 | 10×30 |
| B (Dimensions) (mm) | 5×25 | 5×25 | 5×25 | 5×25 | 5×25 | 5×25 | 5×25 | 5×25 |
| C (mm) | 114 | 152 | 190 | 240 | 240 | 390 | 600 | 690 |
| @D (mm) | 110 | 139 | 150 | 158 | 158 | 166 | 169 | 435 |
| E (mm) | 33 | 40 | 52 | 62 | 72 | 75 | 125 | 150 |
| F (mm) | 22 | 28 | 33 | 37 | 44 | 55 | 90 | 115 |
| Weight with 3m Lift (kg) | 5.7 | 10.8 | 17 | 26.2 | 40 | 62 | 160 | 350 |
| Weight per 1m Add. Lift (kg) | 1.2 | 1.7 | 2.3 | 3.1 | 5.3 | 8.2 | 18.5 | 23.4 |
(FAQs) – (FAQs) – Ratchet Lever Hoist Model S Pro
The S Pro model offers a wide lifting capacity ranging from 0.25 Ton to 9 Tons, making it ideal for both light-duty and heavy-duty industrial lifting applications.
The S Pro hoist is designed for maximum efficiency and safety. Key benefits include::
Compact & portable design for easy handling on-site
High-performance load chain system for smooth operation
Ball bearing-mounted load sprocket for reduced effort
Ball bearing-mounted load sprocket for reduced effort
Swivel hooks with safety latches to prevent accidental release
Yes, the S Pro Ratchet Lever Hoist is fully suitable for overhead lifting tasks and complies with industry standards for safe load handling in workshops, warehouses, and construction sites.
The hoist is equipped with:
Mechanical load brake for immediate load control
Dual ratchet pawls for additional braking security
Galvanized safety latches on hooks
Overload protection to reduce accident risk
The S Pro model is widely used in:
Manufacturing plants
Shipyards and marine applications
Railways and infrastructure
Mining and oil fields
Heavy equipment maintenance
You can purchase the authentic S Pro Ratchet Lever Hoist from Patni Associates, an authorized distributor of lifting equipment. at: Address: Shop No. 4, Amrut Dham Building, Next to Lawrence School, 90 Feet Road, Opposite Dynasty Building, ND Manavhit Hospital, Thakur Complex, Kandivali East, Mumbai 400101. Phone: +91 93237 27225
